VOICELINE

Mikrofone

Hochleistungs‑Audioerfassung für Geräte der nächsten Generation.

Unsere MEMS‑Mikrofone sind für anspruchsvolle Sprach‑ und Audioanwendungen konzipiert. Sie vereinen einen hochpräzisen Wandleraufbau mit integrierter ASIC‑Signalverarbeitung, optimierten Rausch‑ und Dynamikeigenschaften sowie robustem Packaging für raue Einsatzbedingungen.

Präzise Fertigungs‑ und Kalibrierprozesse sorgen für konstante Chargenqualität und Langzeitstabilität. Die Mikrofone liefern hohe Empfindlichkeit, niedrige Eigenrauschpegel und zuverlässige Sprachverständlichkeit selbst in lauten oder wechselnden Umgebungen.

Flexible Gehäuseformate, analoge und digitale Schnittstellen sowie kundenspezifische Anpassungen ermöglichen eine einfache Integration in Mobilgeräte, Automotive‑Systeme und IoT‑Applikationen.

Warum MEMS‑Mikrofone von InnoSens?

  • Breites, sofort verfügbares Portfolio für Prototyping, Mittelstand und Großserien
  • Hohe Empfindlichkeit, niedriges Eigenrauschen und starke SNR‑Werte
  • Stabile Performance über Temperatur, Feuchte und Vibration
  • Kompakte Packages in zahlreichen Top‑ und Bottom‑Port‑Varianten
  • Analoge Single‑Ended‑ und digitale PDM‑Modelle für flexible Integration
  • Hohe AOP‑Optionen für laute Umgebungen und anspruchsvolle Audio‑Anwendungen
  • Präzise Fertigung für enge Toleranzen und konsistente Chargenqualität
  • Varianten mit unterschiedlichen Frequenzgängen, Output‑Formaten und Package‑Optionen

Anwendungsbereiche

  • Smartphones, Tablets und mobile Endgeräte
  • Wearables, Earbuds und Hearables
  • Smart‑Home‑Geräte und Sprachassistenzsysteme
  • Laptops, Notebooks und Konferenz‑Audio
  • Automotive‑Innenraumsensorik und Freisprechsysteme
  • Industrie‑ und Maschinenüberwachung (akustische Diagnose)
  • IoT‑Knoten für akustische Ereigniserkennung

Produktportfolio – MEMS‑Mikrofone

More product variants available upon request!

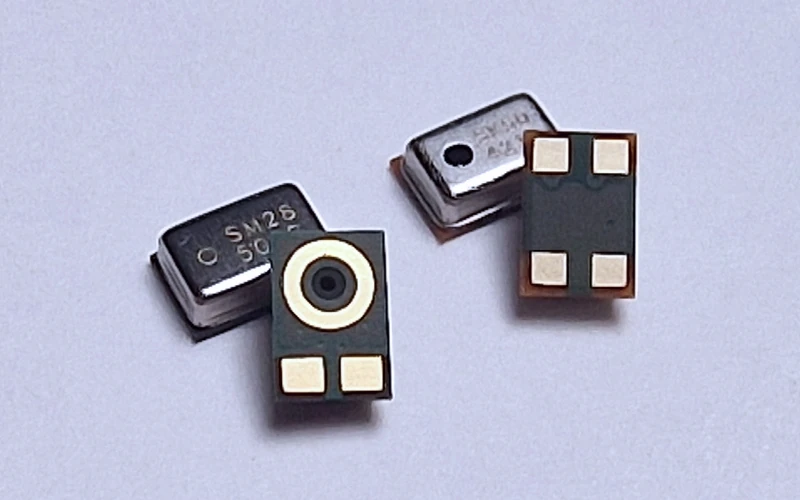

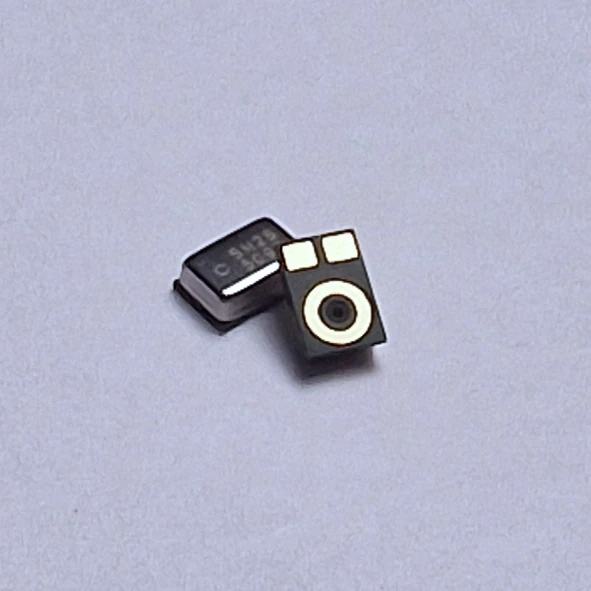

ISM-S27-A66B-001

Contact our team
Sensitivity
-38±2 dBV/Pa
Package Dimensions
2.75 x 1.85 x 1.05 mm³
SNR
66 dB (A)
Interface
Analog, single-ended
AOP
128 dB SPL
Port
Bottom
Current Consumption
125 µA
Supply Voltage
1.6 - 3.6 V

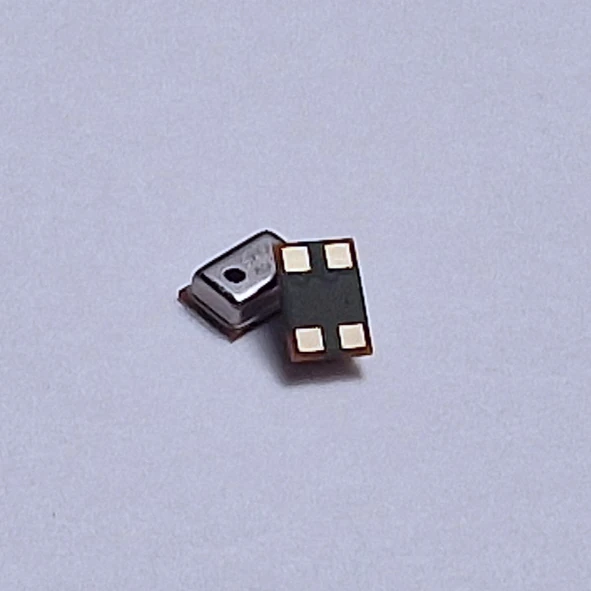

ISM-S27-A59T-001

Contact our team
Sensitivity
-42±1 dBV/Pa
Package Dimensions
2.75 x 1.85 x 0.95 mm³
SNR
59 dB (A)
Interface
Analog, single-ended
AOP
132 dB SPL
Port
Top
Current Consumption
100 µA
Supply Voltage
1.6 - 3.6 V

ISM-S27-A62T-001

Contact our team
Sensitivity
-38±1 dBV/Pa
Package Dimensions
2.75 x 1.85 x 0.95 mm³
SNR
62 dB (A)
Interface
Analog, single-ended
AOP
128 dB SPL
Port
Top
Current Consumption
110 µA
Supply Voltage
1.6 - 3.6 V

ISM-S27-A64T-001

Contact our team
Sensitivity
-38±1 dBV/Pa
Package Dimensions
2.75 x 1.85 x 0.95 mm³
SNR
64 dB (A)
Interface
Analog, single-ended
AOP
128 dB SPL
Port
Top
Current Consumption
125 µA
Supply Voltage
1.6 - 3.6 V

ISM-S27-A65B-001

Contact our team
Sensitivity
-38±1 dBV/Pa
Package Dimensions
2.75 x 1.85 x 0.90 mm³
SNR
65 dB (A)
Interface
Analog, single-ended
AOP
130 SPL
Port
Bottom
Current Consumption
110 µA
Supply Voltage
1.6 - 3.6 V

ISM-S27-A64B-001

Contact our team
Sensitivity
-38±1 dBV/Pa
Package Dimensions
2.75 x 1.85 x 0.90 mm³
SNR
64.5 dB (A)
Interface
Analog, single-ended
AOP
128 dB SPL
Port
Bottom
Current Consumption
110 µA
Supply Voltage
1.6 - 3.6 V

ISM-S27-A62B-001

Contact our team
Sensitivity
-38±1 dBV/Pa
Package Dimensions
2.75 x 1.85 x 0.90 mm³
SNR
62 dB (A)
Interface
Analog, single-ended
AOP
128 dB SPL
Port
Bottom
Current Consumption
100 µA
Supply Voltage
1.6 - 3.6 V

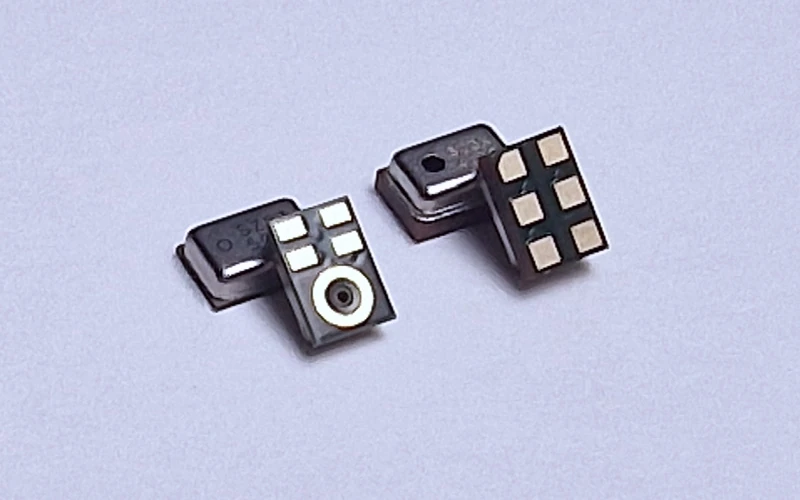

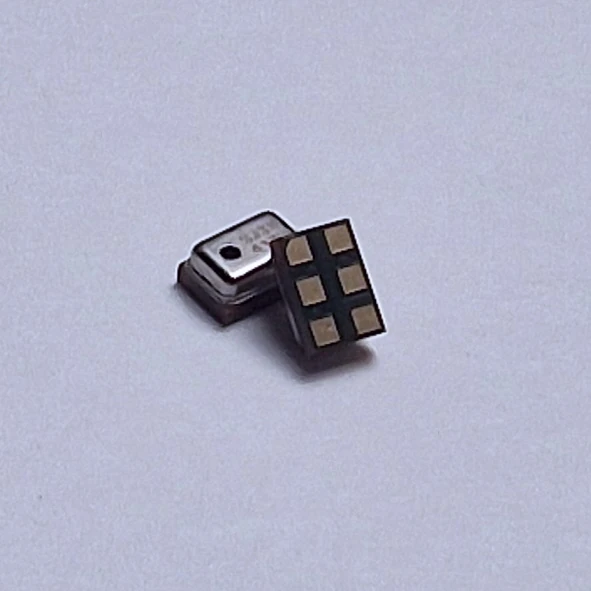

ISM-S27-D62T-001

Contact our team
Sensitivity
-26±1 dBFS
Package Dimensions
2.75 × 1.85 × 1.25 mm³
SNR
62 dB (A)
Interface
Digital, PDM
AOP
120 dB SPL
Port
Bottom
Current Consumption
850 µA
Supply Voltage
1.6 - 3.6 V

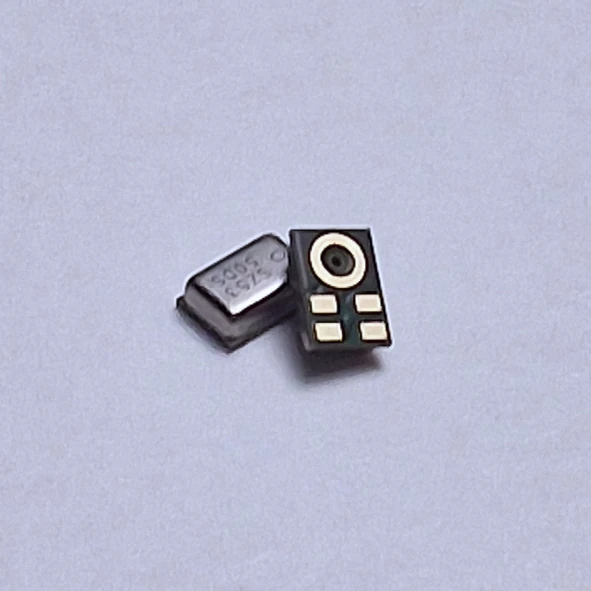

ISM-S27-D63B-001

Contact our team
Sensitivity
-26±1 dBFS
Package Dimensions
2.75 x 1.85 x 0.90 mm³
SNR
63 dB (A)
Interface
Digital, PDM
AOP
120 dB SPL
Port
Bottom
Current Consumption
850 µA
Supply Voltage
1.6 - 3.6 V

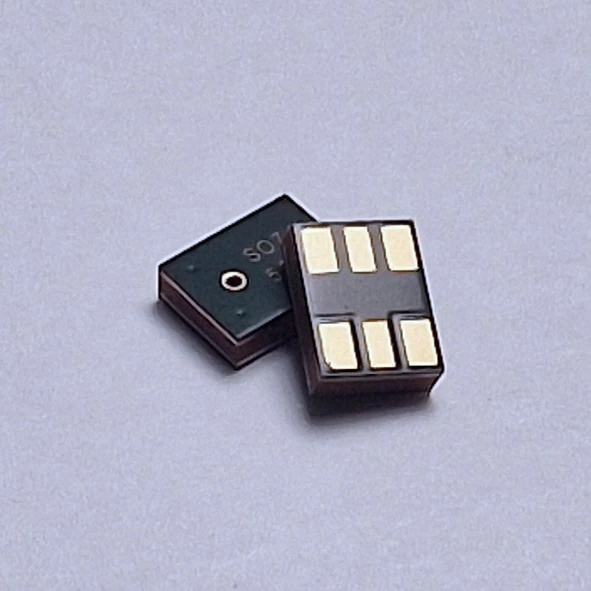

ISM-S35-A65T-001

Contact our team
Sensitivity
-38±1 dBV/Pa
Package Dimensions
3.50 x 2.65 x 1.00 mm³
SNR
65 dB (A)
Interface
Analog, single-ended
AOP
128 dB SPL
Port
Top
Current Consumption
110 µA
Supply Voltage
1.6 - 3.6 V

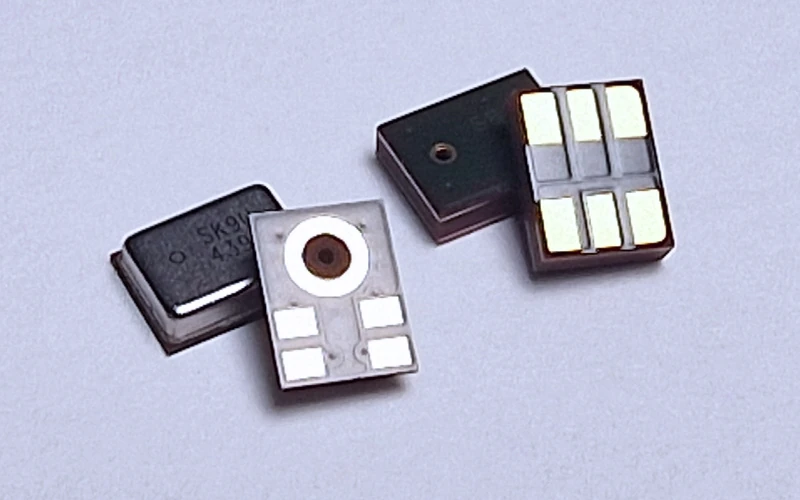

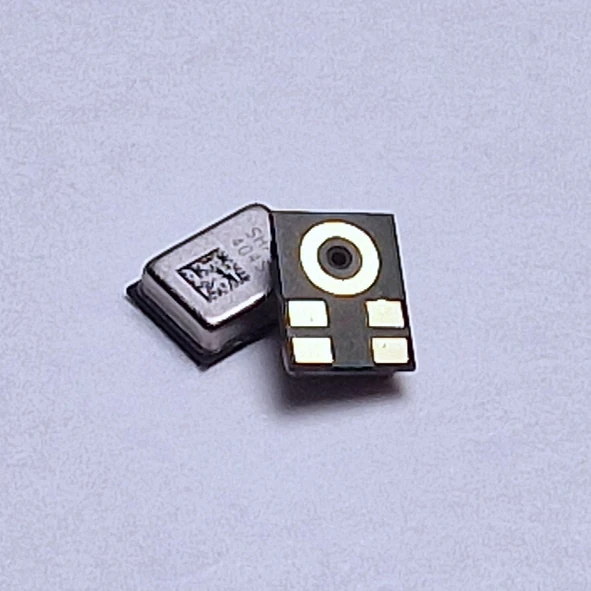

ISM-S35-A70B-001

Contact our team
Sensitivity
-38±1 dBV/Pa
Package Dimensions
3.50 x 2.65 x 1.10 mm³
SNR
70 dB (A)
Interface
Analog, single-ended
AOP
128 dB SPL
Port
Bottom
Current Consumption
100 µA
Supply Voltage
1.6 - 3.6 V

ISM-S35-A68B-001

Contact our team
Sensitivity
-38±1 dBV/Pa
Package Dimensions
3.50 x 2.65 x 0.98 mm³
SNR
68 dB (A)
Interface
Analog, single-ended
AOP
130 dB SPL
Port
Bottom
Current Consumption
125 µA
Supply Voltage
1.6 - 3.6 V

ISM-S35-A65B-001

Contact our team
Sensitivity
-38±1 dBV/Pa
Package Dimensions
3.50 x 2.65 x 0.98 mm³
SNR
65 dB (A)
Interface
Analog, single-ended
AOP
128 dB SPL
Port
Bottom
Current Consumption
110 µA
Supply Voltage
1.6 - 3.6 V

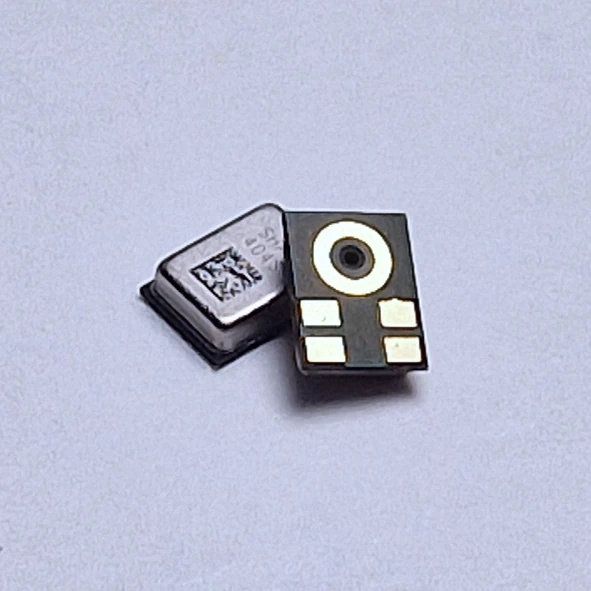

ISM-S35-D67B-001

Contact our team
Sensitivity
-26±1 dBFS
Package Dimensions
3.50 x 2.65 x 0.98 mm³
SNR
67 dB (A)
Interface
Digital, PDM
AOP
120 dB SPL
Port
Bottom
Current Consumption
850 µA
Supply Voltage
1.6 - 3.6 V

ISM-S35-D66B-001

Contact our team
Sensitivity
-37±1 dBFS
Package Dimensions
3.50 x 2.65 x 0.98 mm³
SNR
66.5 - 68 dB (A)
Interface
Digital, PDM
AOP
130 dB SPL
Port
Bottom
Current Consumption
950 - 1400 µA
Supply Voltage
1.6 - 3.3 V

ISM-S35-D64B-001

Contact our team
Sensitivity
-26±1 dBFS
Package Dimensions
3.50 x 2.65 x 0.98 mm³
SNR
64 dB (A)
Interface
Digital, PDM
AOP
120 dB SPL
Port
Bottom
Current Consumption
850 µA
Supply Voltage
1.6 - 3.6 V

ISM-S35-D64T-001

Contact our team
Sensitivity
-26±1 dBFS
Package Dimensions
3.5 × 2.65 × 0.94 mm³
SNR
64 dB (A)
Interface
Digital, PDM
AOP
120 dB SPL
Port
Top
Current Consumption
850 µA
Supply Voltage
1.6 - 3.6 V

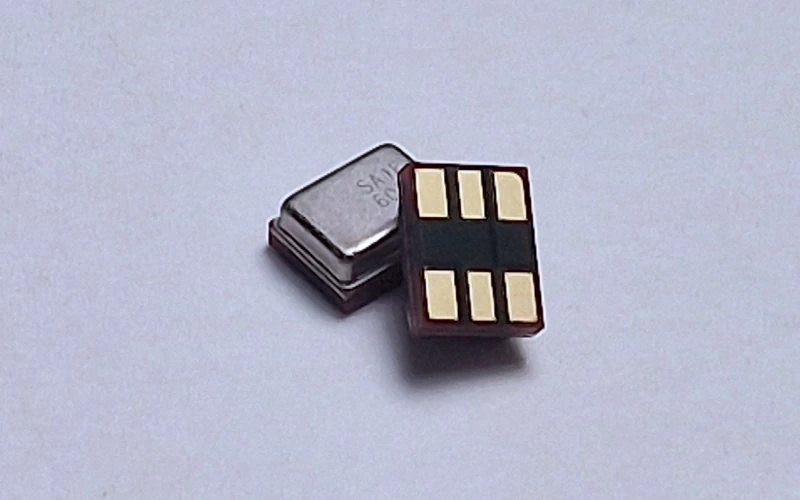

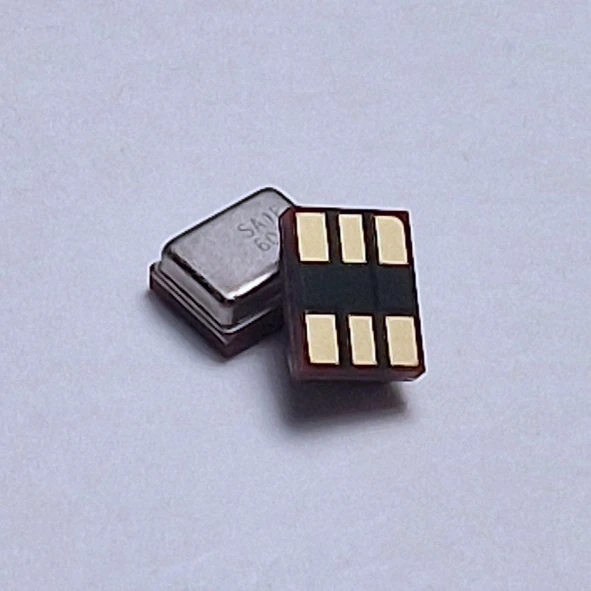

ISM-S35-A71BC-001

Contact our team
Sensitivity
-29±3 dBV/g
Package Dimensions
3.50 x 2.65 x 1.50 mm³
SNR
71 dB (A)
Interface
Analog, single-ended
Acceleration Range
±10 g
Supply Voltage
1.6 - 3.6 V
Current Consumption
90 - 120 µA

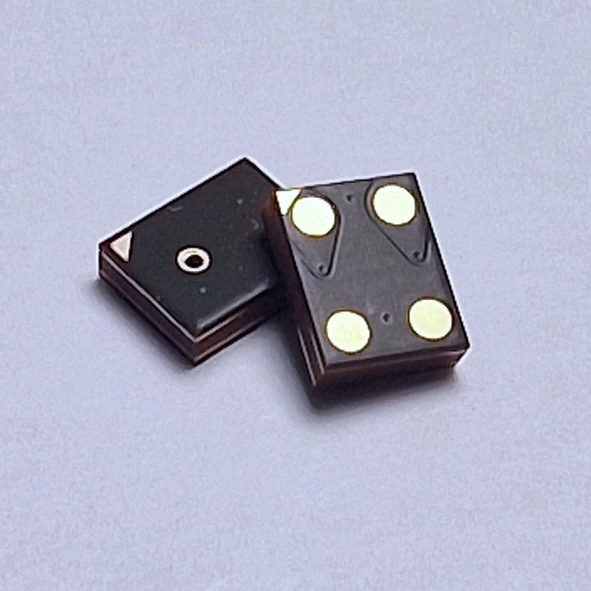

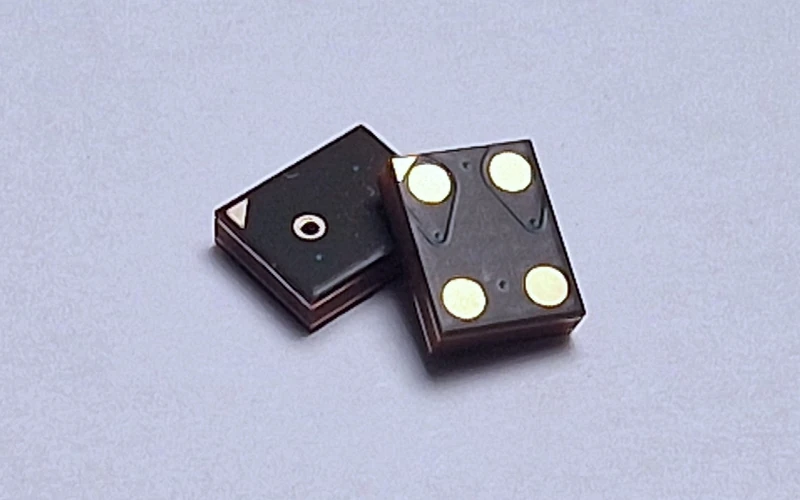

ISM-S37-A65T-001

Contact our team
Sensitivity
-38±1 dBV/Pa
Package Dimensions
3.76 x 2.95 x 1.10 mm³
SNR
65 dB (A)
Interface
Analog, single-ended
AOP
128 dB SPL
Port
Top
Current Consumption
110 µA
Supply Voltage
1.6 - 3.6 V

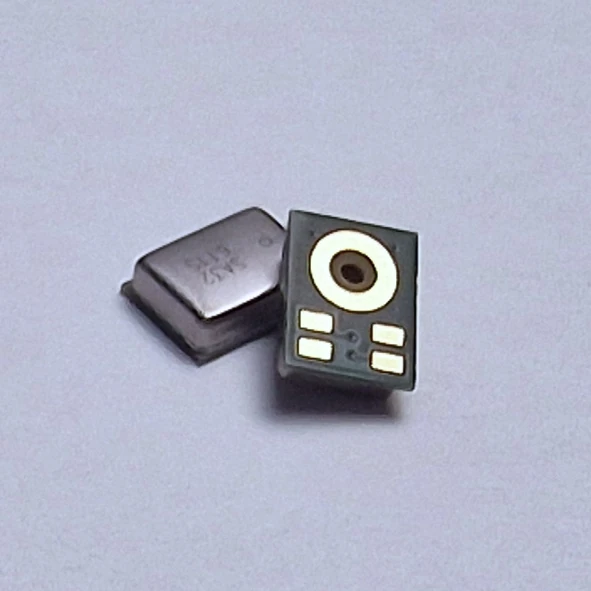

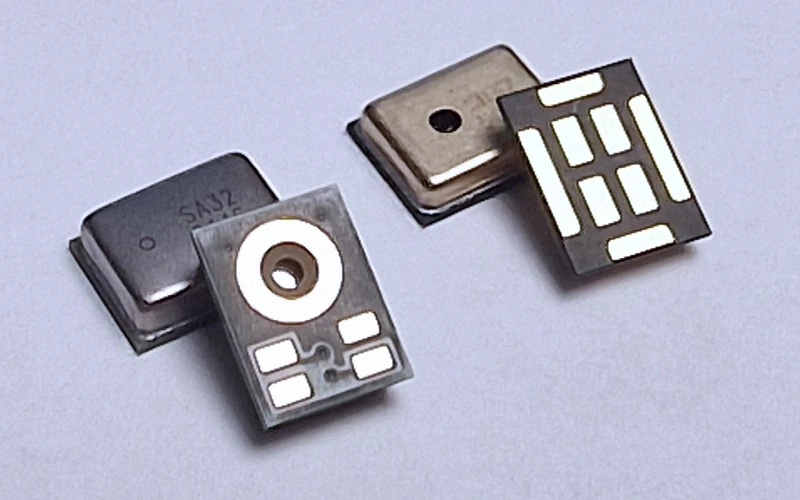

ISM-S40-A72B-001

Contact our team
Sensitivity
-38±1 dBV/Pa
Package Dimensions
4.00 x 3.00 x 1.20 mm³
SNR
72 dB (A)
Interface
Analog, single-ended
AOP
127 dB SPL
Port
Bottom
Current Consumption
110 µA
Supply Voltage
1.6 - 3.6 V

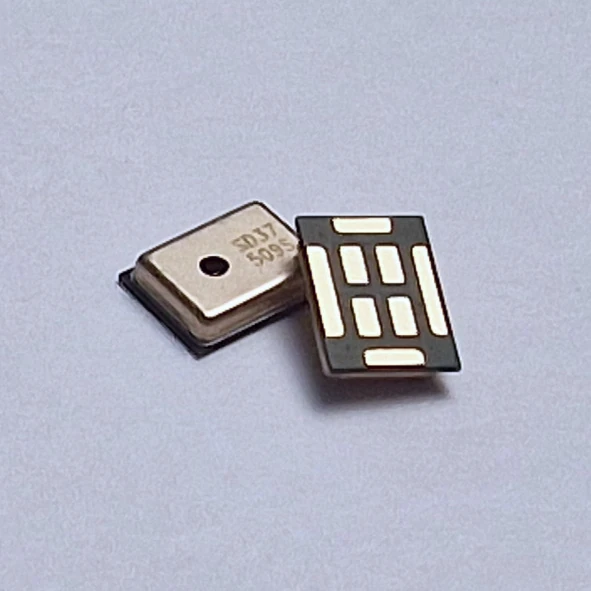

IS-M-S40-D59T-001

Contact our team
Sensitivity
-26±1 dBFS
Package Dimensions
4.0×3.0×1.0 mm³
SNR
64.5 - 65 dB (A)
Interface
Digital, PDM
AOP
120 dB SPL
Port
Top
Current Consumption
450 - 1420 µA
Supply Voltage
1.6 - 3.6 V

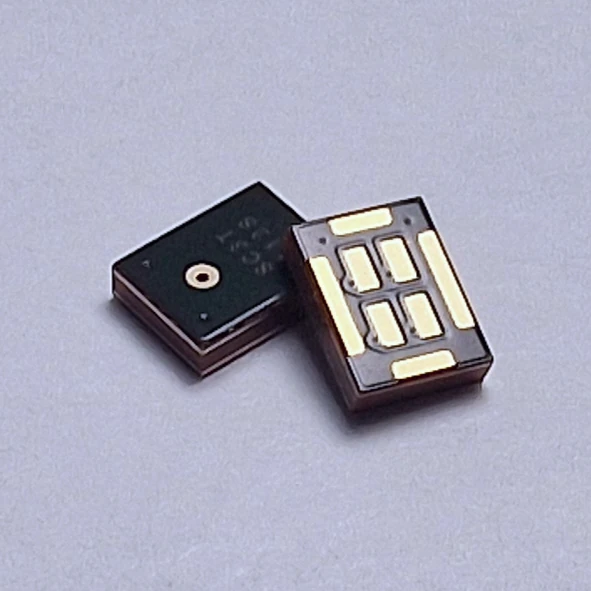

ISM-S40-D64T-001

Contact our team
Sensitivity
-26±1 dBFS
Package Dimensions
4.0×3.0×1.0 mm³
SNR
59 dB (A)
Interface
Digital, PDM
AOP
115 dB SPL
Port
Top
Current Consumption
920 µA
Supply Voltage
1.6 - 3.6 V

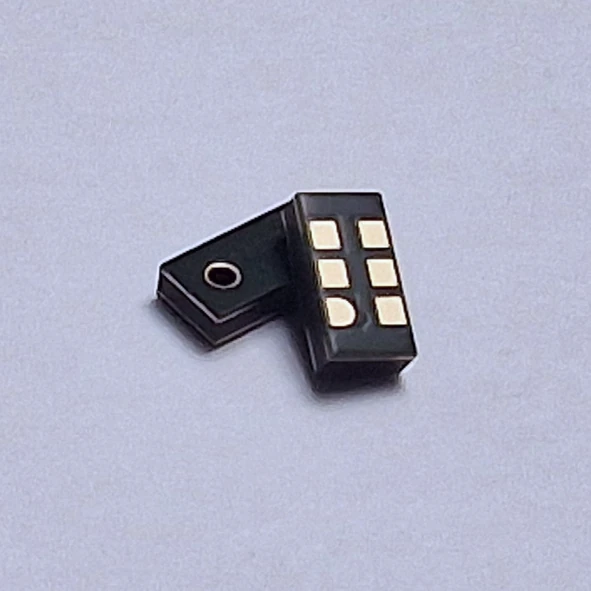

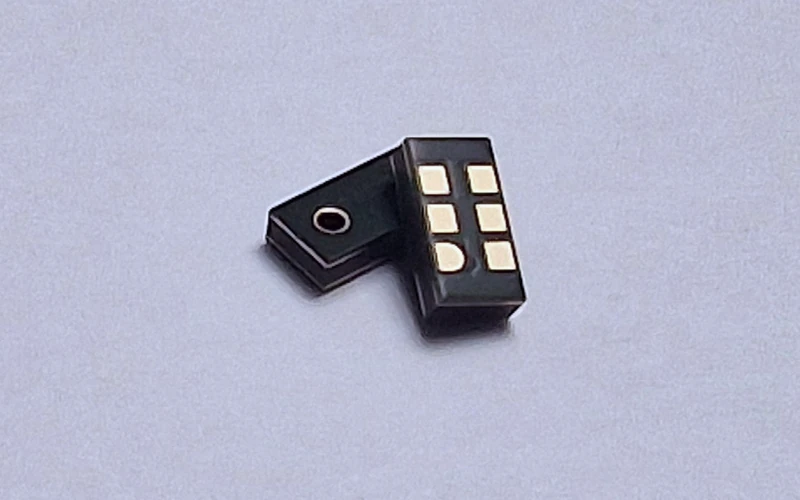

ISM-S40A-D67T-001

Contact our team
Sensitivity
-26±1 dBFS
Package Dimensions
4.0×2.0×1.1 mm³
SNR
67 dB (A)
Interface
Digital, PDM
AOP
120 dB SPL
Port
Top
Current Consumption
850 µA
Supply Voltage
1.6 - 3.6 V

Deine Anwendung hat besondere Anforderungen?

Wir entwickeln kundenspezifische MEMS‑Mikrofone, abgestimmt auf definierte Empfindlichkeiten, Frequenzgänge, AOP‑Ziele, Package‑Varianten oder Umweltbedingungen. Ob Anpassung eines bestehenden Designs oder komplette Neuentwicklung — unser Engineering‑Team liefert die optimale Lösung für deine Anwendung.
